Junkers Ju 86 Fuselage Details





Interior details of monocoque-type fusleage of the Junkers Ju 86, as featured in Das Flugzeug - Dritte Auflage [The Aircraft - Third Edition], edited by Theo E. Sönnichsen, published by Richard Carl Schmidt & Co., Berlin, Germany, 1942.

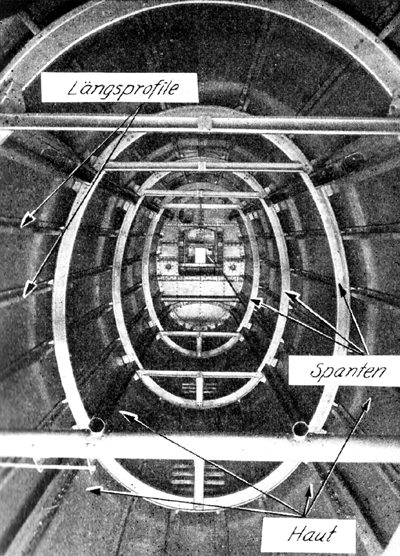

Top image shows fuselage in direction flight, indicating upper longeron [Oberes Längsprofil] and frame [Spante]. Lower image shows view towards the tail of the aircraft, indicating longerons [Längsprofile], frames [Spanten], and skin [Haut]. (Fischer collection)
